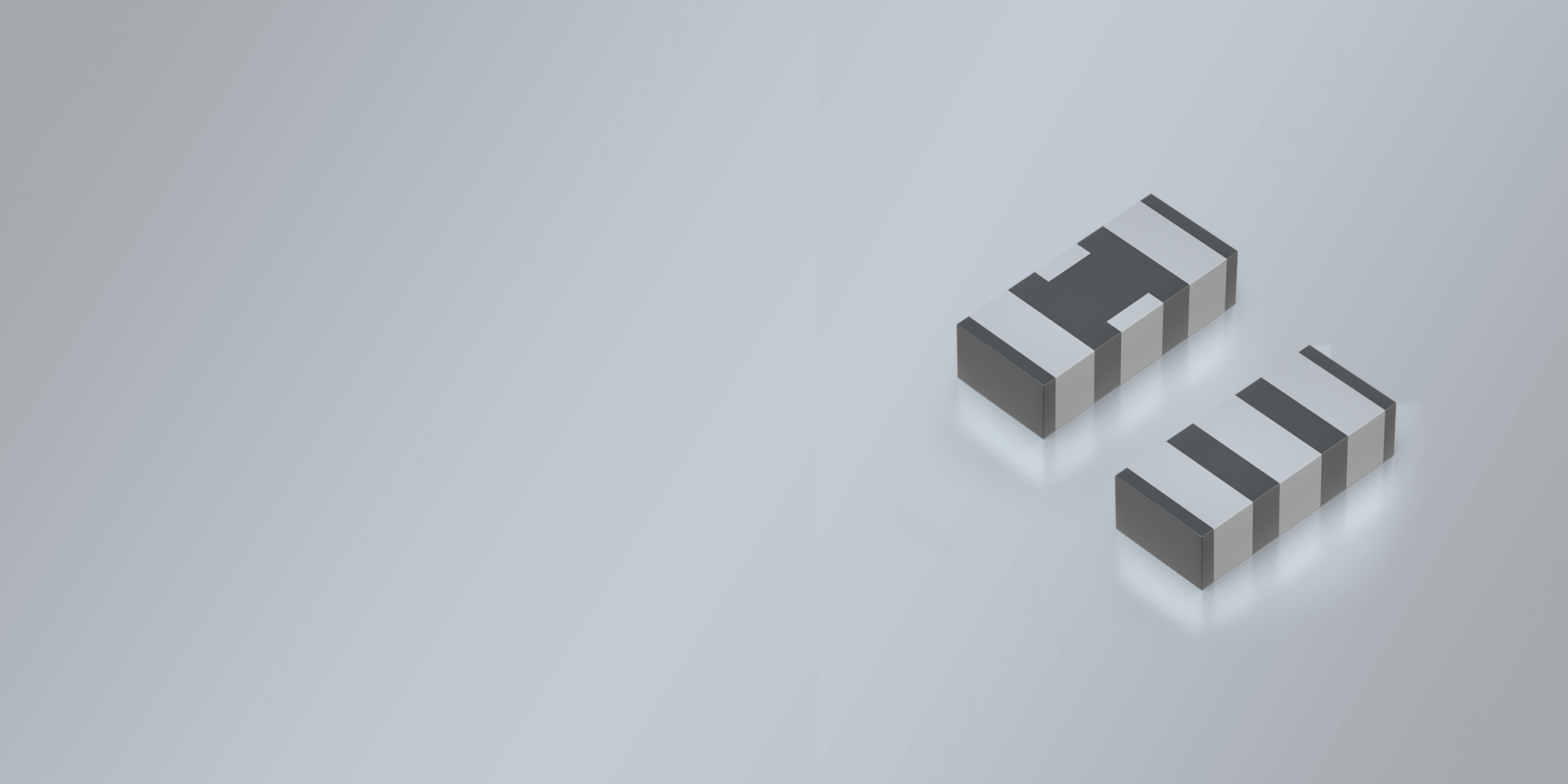

ZTTCV-MT Ceramic Resonator
- Excellent values for frequency and aging stability
- High reliability for low cost
- Integrated capacitor
- Small dimensions and low profile
- Wide frequency range
- Excellent clock signal generator
-
Product Category
Ceramic-Resonators
-
Package
SMD Resonator
-
Dimensions in mm (W x D x H)
3.7 x 3.1 x 1.0 mm / 3 pads
-
Frequency Range
8.00 - 13.00 MHz
-
FREQUENCY ACCURACY
±0.5% at 25°C
-
STABILITY OVER TEMPERATURE
±0.4% over -25/+85°C
-
OPERATING TEMPERATURE
-25/+85°C
-
AGING FOR 10 YEARS
±0.3%
-
BUILD-IN CAPACITOR
available
DATASHEET: SMD ZTTCV-MT SERIES CERAMIC RESONATOR
