Quartz Crystal Configurator

Find LRT-technology Quartz Crystals based on parametric data entry. Use this configurator providing pull-down menus for selecting your crystal.
Entering more parameters will narrow search results. Compare, Select & Evaluate!
For further information and support please use our contact-forms or contact our specialized engineering team under the following phone number: +49/8191/305395.

Each quartz oscillator has its own product generator, with which you can configure your desired product and request it quickly and easily with one click.

WE RECOMMEND THE FOLLOWING TOP SELLER AND LONG-TERM AVAILABLE PRODUCTS FOR NEW APPLICATIONS:

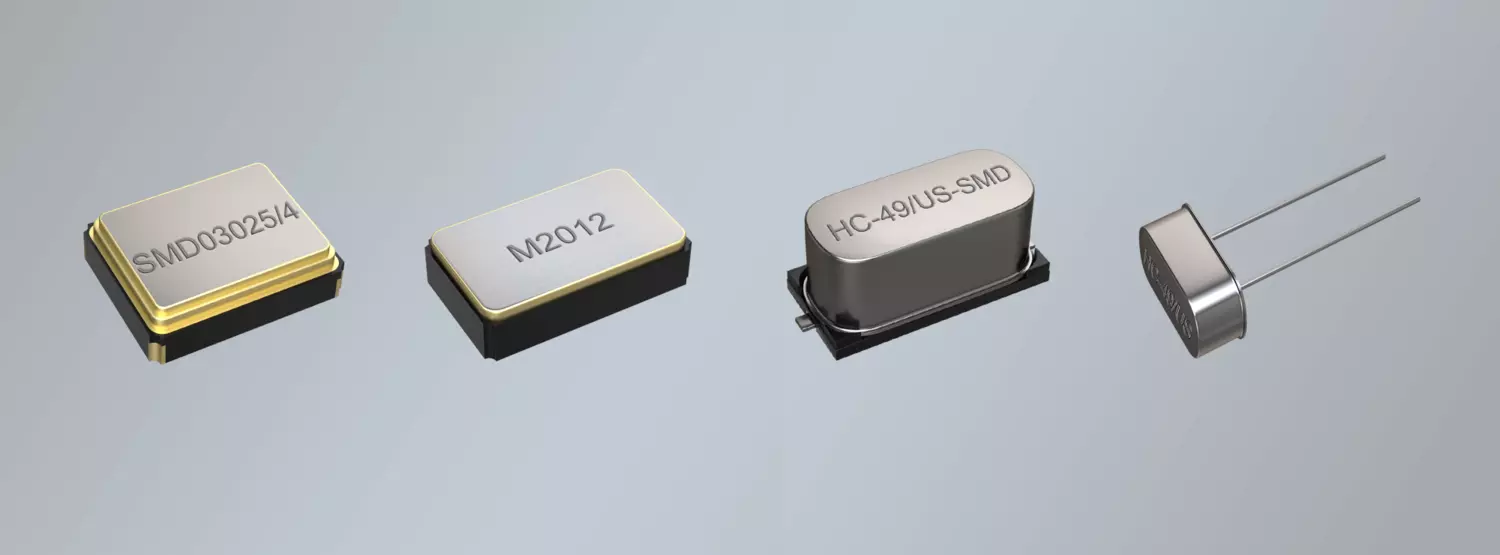

HC-49/US-SMD - if there is a lot of space on the board. Low resistances allow fast oscillation start-up.
SMD01612/4 - resistance-optimized, very fast oscillating MICRO-SMD quartz crystal for very small applications, also suitable for automotive. For > 24 MHz is recommended SMD02016/4.
SMD02016/4 - resistance-optimized, very fast oscillating MICRO-SMD quartz crystal for very small applications, also suitable for automotive.
SMD03025/4 - the most universal and cost-effective MINI-SMD quartz in the ceramic housing. Low resistances promote fast oscillation start-up.
SMD0503/4 - cheapest SMD crystal for the frequency range 8.0 - 12.0 MHz, also suitable for automotive. For > 12 MHz is recommended SMD03025/4.
M3215 - is the most used 32.768 kHz SMD watch quartz. Also available as a reduced resistance version with 50 kOhm max. for low power designs und automotive applications (AECQ200).
M1610 - very small 32.768 kHz SMD watch quartz. Also available as a reduced resistance version with 60 kOhm max. for low power designs und automotive applications (AECQ200).

Product Name	Package	Product Category	Dimensions in mm (W x D x H)	Frequency Range	Data Sheet	Sample	Product

HC-49/US-SMD/2 pads	SMD Metal	MHz Crystal	11.05 x 4.7 x 4.2 mm	3.50 - 80.00 MHz	PDF	Request	Enquiry
HC-49/US-GSMD/3 pads	SMD Metal	MHz Crystal	11.05 x 4.7 x 4.2 mm	3.50 - 80.00 MHz	PDF	Request	Enquiry
HC-49/U-SMD CLIP	SMD Metal	MHz Crystal	11.05 x 5.3 x 18.0 mm	1.84 - 200.00 MHz	PDF	Request	Enquiry
UM/1-SMD CLIP	SMD Metal	MHz Crystal	8.0 x 3.6 x 12.5 mm	6.00 - 200.00 MHz	PDF	Request	Enquiry
UM/5-SMD CLIP	SMD Metal	MHz Crystal	6.0 x 3.6 x 10.5 mm	6.00 - 200.00 MHz	PDF	Request	Enquiry
SMD01612/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	1.6 x 1.2 x 0.3 mm	24.00 - 285.00 MHz	PDF	Request	Enquiry
SMD02016/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	2.0 x 1.6 x 0.45 mm	16.00 - 285.00 MHz	PDF	Request	Enquiry
SMD02502/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	2.5 x 2.0 x 0.6 mm	12.00 - 285.00 MHz	PDF	Request	Enquiry
SMD03025/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	3.2 x 2.5 x 0.8 mm	8.00 - 285.00 MHz	PDF	Request	Enquiry
SMD03025/4 Ultrasonic	SMD Ceramic/4pad	MHz Crystal	3.2 x 2.5 x 0.7 mm	12.00 - 40.00 MHz	PDF	Request	Enquiry
SMD0503/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	5.0 x 3.2 x 0.8 mm	8.00 - 133.00 MHz	PDF	Request	Enquiry
SMD0503/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	5.0 x 3.2 x 0.75 mm	8.00 - 112.00 MHz	PDF	Request	Enquiry
SMD0503/2CC (Low ESR)	SMD Ceramic/2pad	MHz Crystal	5.0 x 3.2 x 1.2 mm	10.00 - 54.00 MHz	PDF	Request	Enquiry
SMD0603/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	6.0 x 3.5 x 1.1 mm	8.00 - 80.00 MHz	PDF	Request	Enquiry
SMD0603/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	6.0 x 3.5 x 1.1 mm	8.00 - 160.00 MHz	PDF	Request	Enquiry
SMD0507/4 (Low ESR)	SMD Ceramic/4pad	MHz Crystal	7.0 x 5.0 x 1.3 mm	6.00 - 80.00 MHz	PDF	Request	Enquiry
SMD0507/2 (Low ESR)	SMD Ceramic/2pad	MHz Crystal	7.0 x 5.0 x 1.1 mm	6.00 - 150.00 MHz	PDF	Request	Enquiry
SMD1045/4	SMD Ceramic/4pad	MHz Crystal	10.0 x 4.5 x 1.4 mm	3.2768 MHz - 10 MHz	PDF	Request	Enquiry
SMD1045/2	SMD Ceramic/2pad	MHz Crystal	10.0 x 4.5 x 1.4 mm	3.2768 MHz - 10 MHz	PDF	Request	Enquiry
HC-49/US/2 pins	THT Metal	MHz Crystal	11.05 x 4.65 x 3.5 mm	3.49 - 75.00 MHz	PDF	Request	Enquiry
HC-49/US/3 pins	THT Metal	MHz Crystal	11.05 x 4.65 x 3.5 mm	3.49 - 75.00 MHz	PDF	Request	Enquiry
HC-49/U	THT Metal	MHz Crystal	11.05 x 4.7 x 13.4 mm	1.84 - 200.00 MHz	PDF	Request	Enquiry
UM/1	THT Metal	MHz Crystal	8.0 x 3.1 x 8.0 mm	6.00 - 200.00 MHz	PDF	Request	Enquiry
UM/5	THT Metal	MHz Crystal	8.0 x 3.1 x 6.0 mm	6.00 - 200.00 MHz	PDF	Request	Enquiry
M1610 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	1.6 x 1.0 x 0.45 mm	32.768 kHz	PDF	Request	Enquiry
M2012 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	2.0 x 1.2 x 0.55 mm	32.768 kHz	PDF	Request	Enquiry
M3215 (AVAILABLE IN STOCK)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz	PDF	Request	Enquiry
M3215HT (High Temp. -40/+125°C)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz	PDF	Request	Enquiry
M3215RR (50 kΩ - low power design)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz	PDF	Request	Enquiry
M3215A (AEC-Q200)	SMD Ceramic/2pad	kHz Crystal	3.2 x 1.5 x 0.75 mm	32.768 kHz	PDF	Request	Enquiry
M4819 (Not recommended for new design)	SMD Ceramic/2pad	kHz Crystal	4.8 x 1.9 x 0.8 mm	32.768 kHz	PDF	Request	Enquiry
