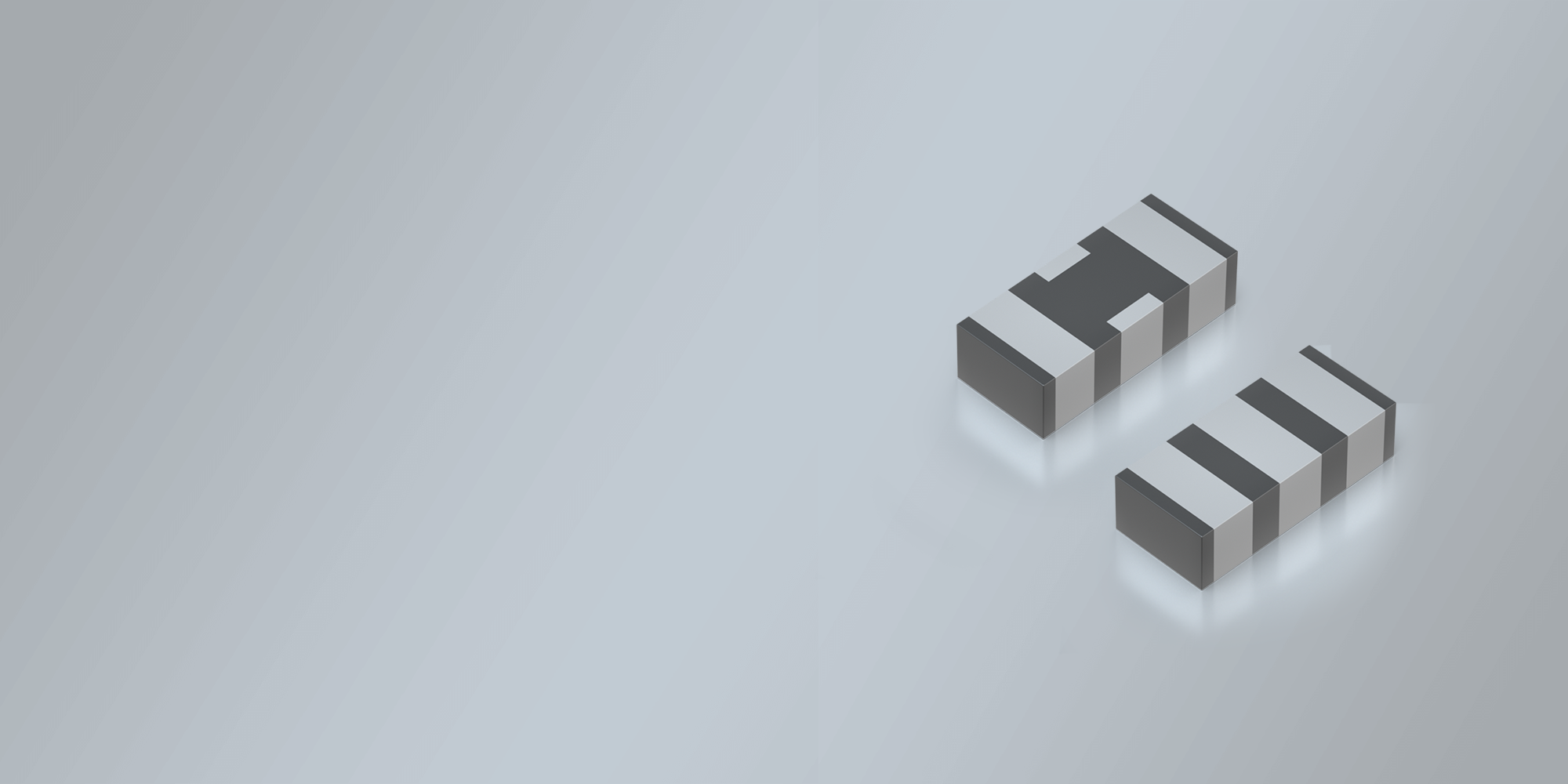

ZTTCE-MG Ceramic Resonator
- Integrated capacitor
- Wide frequency range
- High reliability for low cost
- Small dimensions and low profile
- Excellent values for frequency and aging stability
- Excellent clock signal generator
-
Product Category
Ceramic-Resonators
-
Package
SMD Resonator
-
Dimensions in mm (W x D x H)
3.2 x 1.3 x 1.0 mm / 3 pads
-
Frequency Range
8.00 - 12.00 MHz
-
FREQUENCY ACCURACY
±0.5% at 25°C
-
STABILITY OVER TEMPERATURE
±0.3% over -25/+85°C
-
OPERATING TEMPERATURE
-25/+85°C
-
AGING FOR 10 YEARS
±0.3%
-
BUILD-IN CAPACITOR
available
DATASHEET: SMD ZTTCE-MG SERIES CERAMIC RESONATOR
