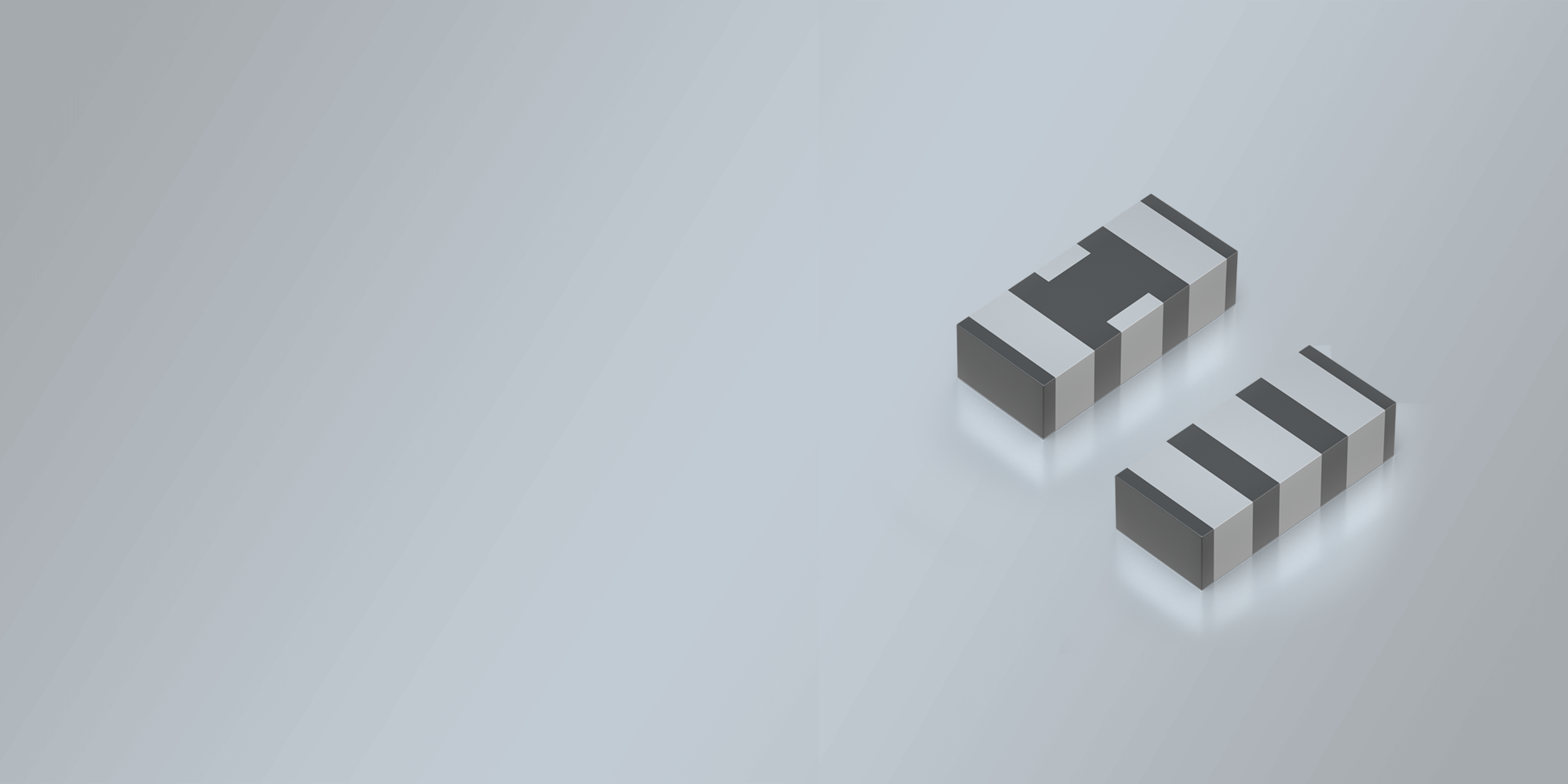

ZTTCW-MX Ceramic Resonator
- Excellent values for frequency and aging stability
- Integrated capacitor
- High reliability for low cost
- Small dimensions and low profile
- Wide frequency range
- Excellent clock signal generator
-
Product Category
Ceramic-Resonators
-
Package
SMD Resonator
-
Dimensions in mm (W x D x H)
2.5 x 2.0 x 1.2 mm / 3 pads
-
Frequency Range
20.00 - 60.00 MHz
-
FREQUENCY ACCURACY
±0.5% at 25°C
-
STABILITY OVER TEMPERATURE
±0.3% over -25/+85°C
-
OPERATING TEMPERATURE
-25/+85°C
-
AGING FOR 10 YEARS
±0.3%
-
BUILD-IN CAPACITOR
available
DATASHEET: SMD ZTTCW-MX SERIES CERAMIC RESONATOR
