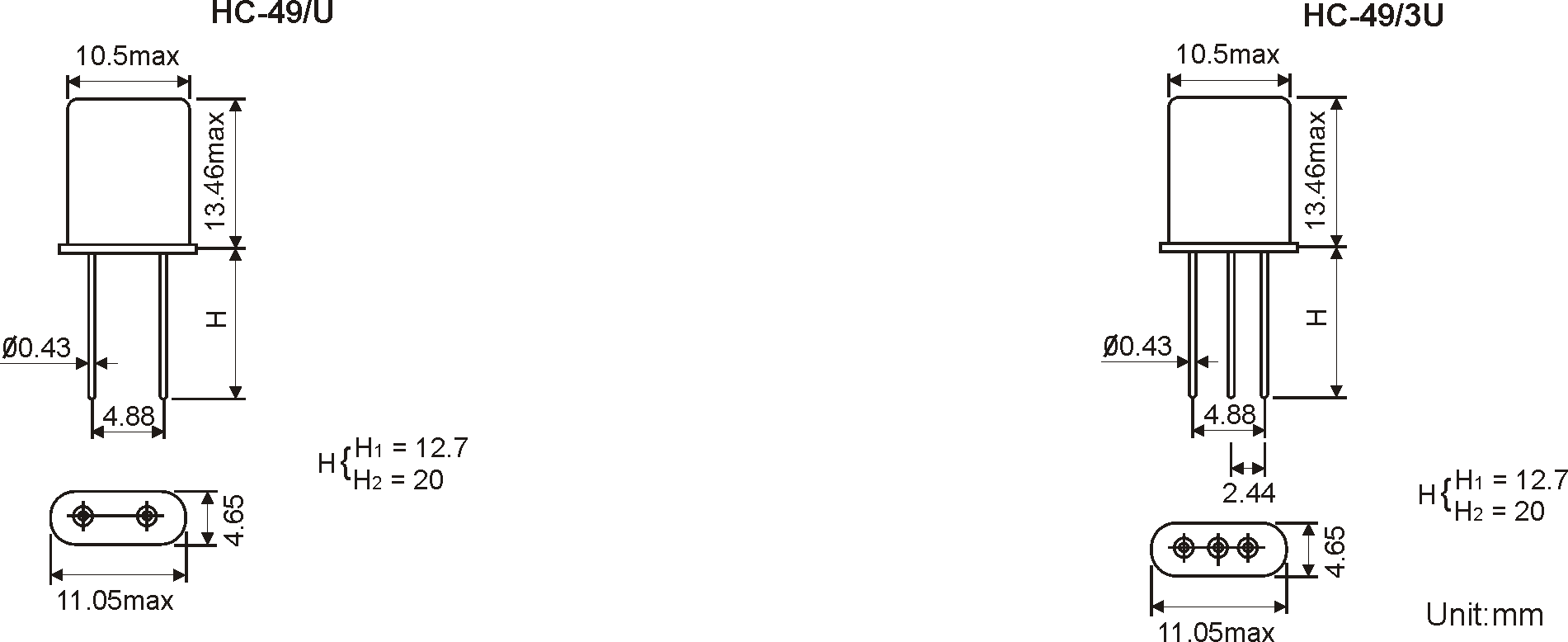

THT QUARTZ CRYSTAL HC-49/U 11.05 x 4.7 mm 1.8432 - 200.0 MHz

NUMBER OF LEADS

HC-49/U = 2 leads (standard)
HC-49/3U = 3 leads (optional)

SMD-VERSION

Available with bent leads and metal jacket

PACKAGE HEIGHT

13.46 mm (standard)
10.7 mm (optional)

FREQUENCY RANGES (SEPARATED)

1.8432 ~ 40.0 MHz AT-Fundamental
20.0 ~ 40.0 MHz BT-Fundamental
23.0 ~ 100.0 MHz 3th Overtone
60.0 ~ 150.0 MHz 5rd Overtone
120.0 ~ 200.0 MHz 7th Overtone

FREQUENCY TOLERANCES AT 25°C

±10 ppm ~ ±50 ppm

RESONACE RESISTANCE

100 Ω max. (1.8432 MHz = 800 Ω max.)

LOAD CAPACITANCE (CL)

6 pF ~ 50 pF or Series

WORKING TEMPERATURE RANGES

0/+50°C ~ -40/+125°C

SHUNT CAPACITANCE C0

7 pF max.

AGING

±3 ~ ±5 ppm per year standard (±2 ppm available as option)

INSULATION RESISTANCE

>500 MΩ DC/100V ±10%

STORAGE TEMPERATURE

-55°+125°C

DELIVERY FORM THT DELIVERY FORM SMD

Bulks standard
Tape and Reel (1000 pcs per reel)

OPTIONS FOR THT

Insulator
Cutted leads
Tape and Reel (1000 pcs per reel)
