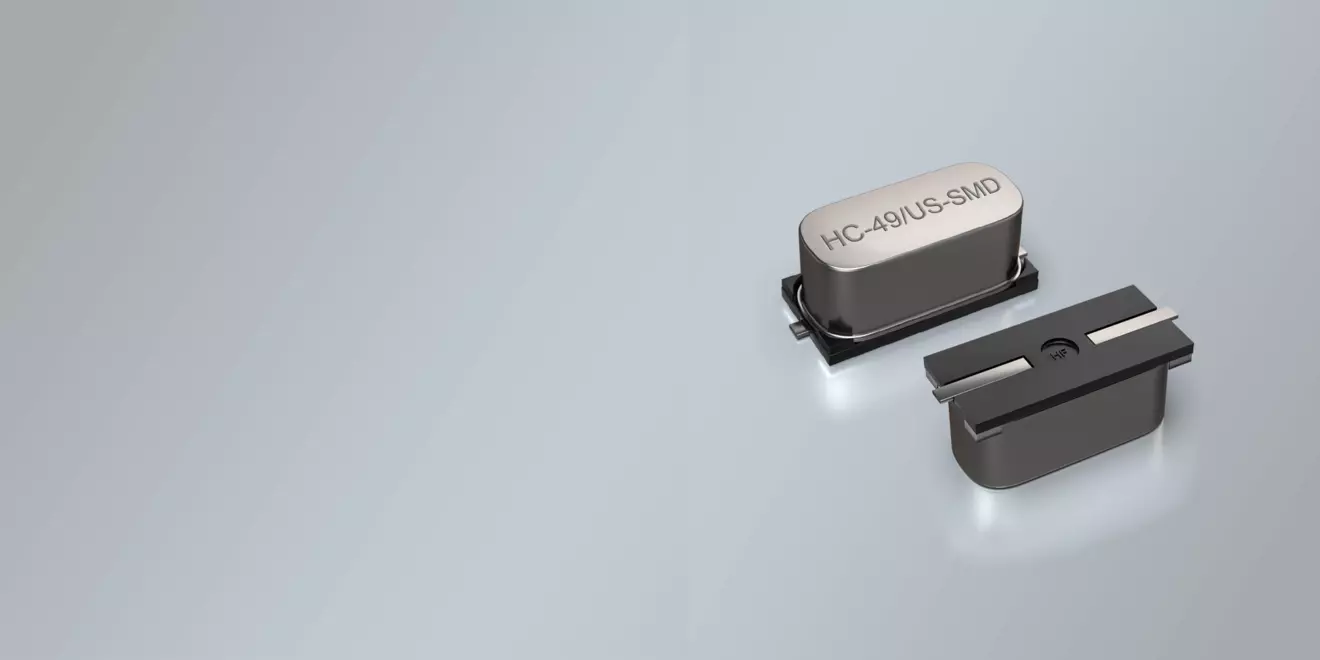

SMD QUARTZ CRYSTAL HC-49/US-SMD 3.5 - 80.0 MHz
- High reliability for low cost / Cheapest available SMD Crystal
- Low profile - 3.2 and 3.0 mm package heights available
- Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
- Extended temperature range to -40/+125°C available
- Very tight frequency tolerances available
- General Data
- Temperature Stability

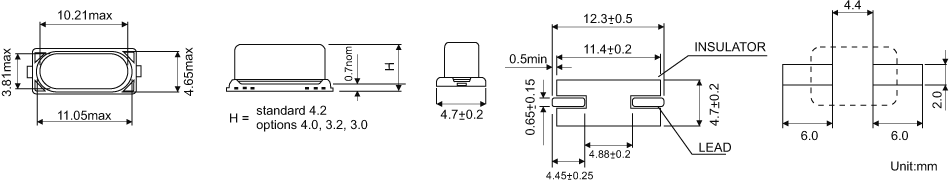

- Dimensions
- Applications
- Product Enquiry Configurator
- Sample Request Configurator
-
Product Name
Quartz Crystal
-
Package
SMD Metal
-
Dimensions in mm (W x D x H)
11.05 x 4.7 x 4.2 mm
-
Frequency Range
3.50 - 80.00 MHz
-
NUMBER OF SOLDER PADS
2
-
FREQUENCY RANGES (SEPARATED)
3.5 ~ 40.0 MHz AT-Fundamental
30 ~ 80.0 MHz 3rd Overtone -
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±30 ppm
-
LOAD CAPACITANCE (CL)
18 pF or customer specify
-
WORKING TEMPERATURE RANGES
-20/+70°C ~ -40/+85°C
-
SHUNT CAPACITANCE C0
7 pF max.
-
DRIVE LEVEL
100 μW standard
(1 mW max. available on request) -
AGING
±5 ppm per year max.
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
| ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • |
| 0/70 °C | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • |
| -40/85 °C | • | • | • | • | |
| -40/125 °C | • |
- Consumer Electronics
- Networking
- Industrial
- RFID/NFC
- IoT
- Wearables
- HD & Storage
- Mobile Communication
- PC/PC Peripheral/IT
- WiMAX, WLAN, Wi-Fi
- Embedded
- Automotive
DATASHEET: SMD QUARTZ CRYSTAL HC-49-US-SMD 2 pads
