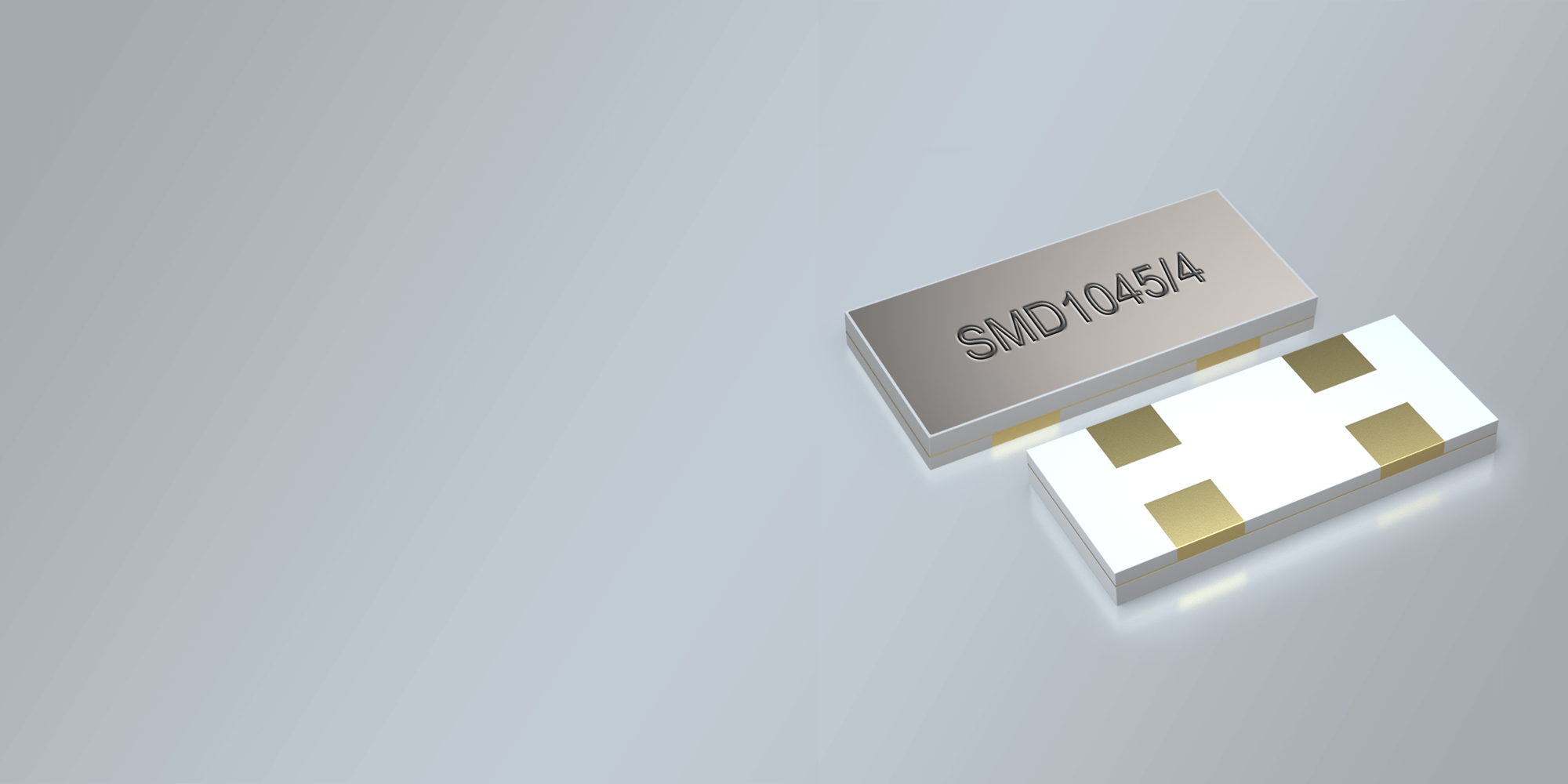

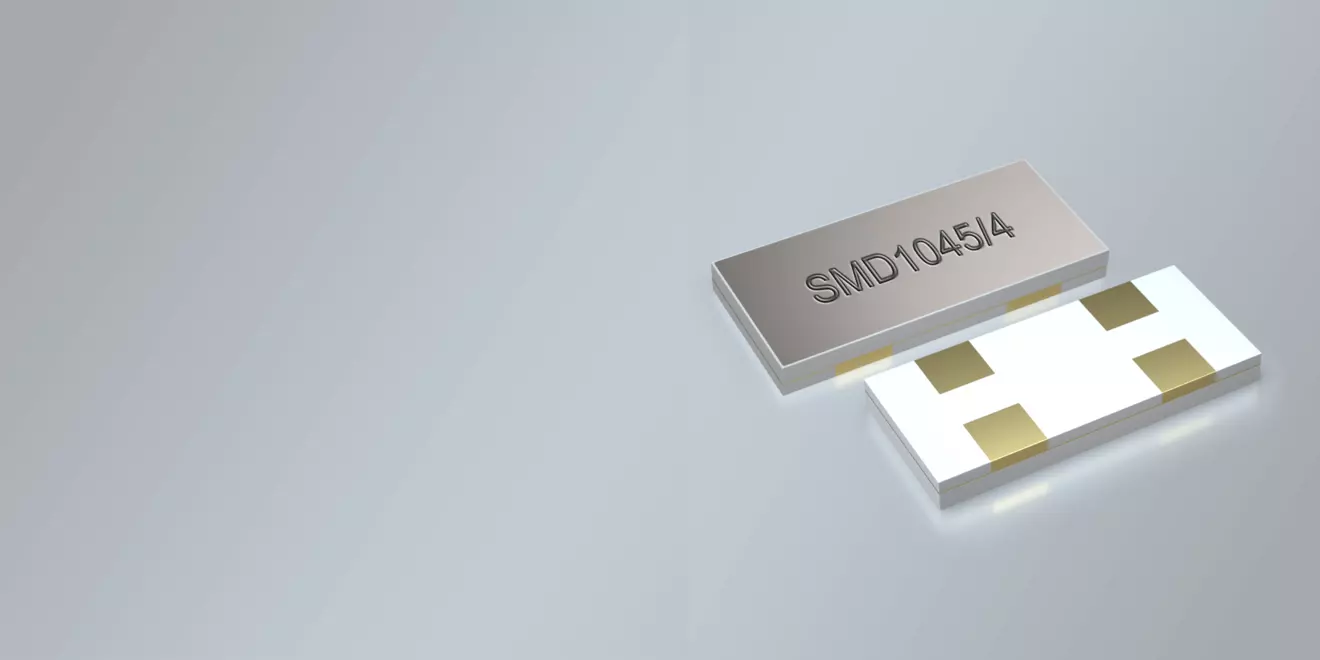

SMD QUARTZ CRYSTAL 10.0 x 4.5 mm 3.2768 - 10.0 MHz Clock
- Low frequencies available
- Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
- Extended temperature range up to -40/85°C available
- Excellent clock signal generator for CPU´s
- General Data
- Temperature Stability
- Dimensions
- Product Enquiry Configurator
- Sample Request Configurator
-
Product Name
SMD Quartz Crystal
-
Package
SMD Ceramic/4pad
-
Dimensions in mm (W x D x H)
10.0 x 4.5 x 1.4 mm
-
Frequency Range
3.2768 MHz - 10 MHz
-
NUMBER OF SOLDER PADS
4
-
FREQUENCY TOLERANCES AT 25°C
±20 ppm ~ ±50 ppm
-
LOAD CAPACITANCE (CL)
10 pF ~ 30 pF or Series, 18 pF standard
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+85°C
-
RESONANCE RESISTANCE
120 Ω max.
-
SHUNT CAPACITANCE C0
7 pF max.
-
DRIVE LEVEL
0.1 mW standard (optional 0.5 mW available)
-
AGING
±5 ppm per year
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
| ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|
| 0/50 °C | • | • | • | • |
| -10/60 °C | • | • | • | • |
| 0/70 °C | • | • | • | • |
| -20/70 °C | • | • | • | • |
| -40/85 °C | • | • | • |
DATASHEET: SMD QUARTZ CRYSTAL SMD1045-4
