SMD WATCH CRYSTAL RR 3.2 x 1.5 mm 32.768 kHz
- Reduced resonance resistance 50 kΩ max. for low power designs
- Cheapest available MINI-Watch-Crystal in ceramic package
- Extended operating temperature range of up to -40/+125°C
- Excellent clock generator for CPU's, Wireless, Mobile Comm., etc.
- Typical applications: IoT, Metering, Industrial, Health Care, Wearables, Portables, Wireless
-
Product Name
32.768 kHz Quartz Crystal
-
Package
SMD Ceramic/2pad
-

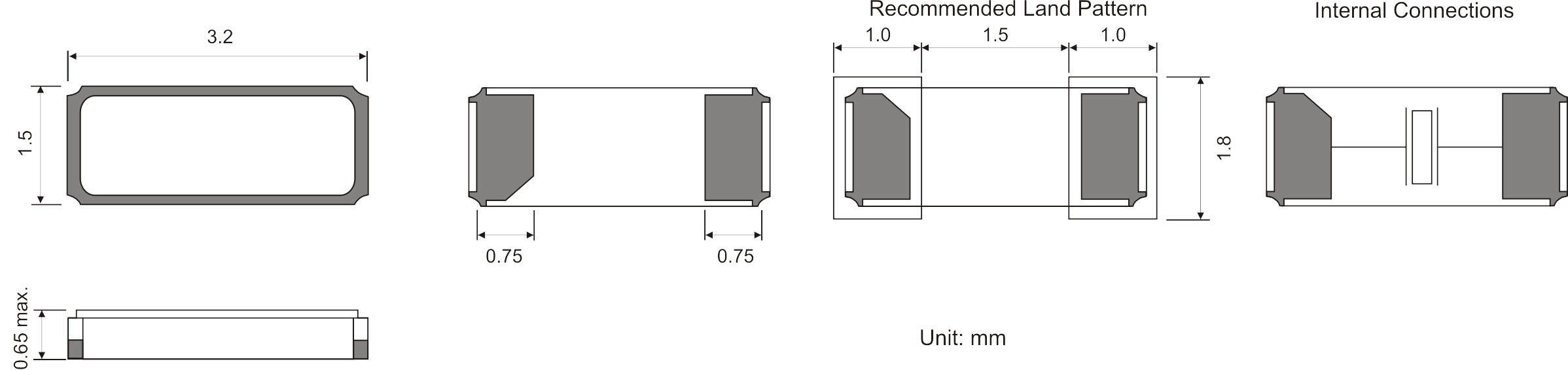

Dimensions in mm (W x D x H)
3.2 x 1.5 x 0.75 mm
-
Frequency Range
32.768 kHz
-
NUMBER OF SOLDER PADS
2
-
FREQUENCY TOLERANCES AT 25°C
±20 ppm (standard)
±10 ~ ±100 ppm (option) -
LOAD CAPACITANCE (CL)
12.5 pF (standard)
6,7 and 9pF available on request -
WORKING TEMPERATURE RANGE
-40/+85°C or -40/+105°C or -40/+125°C
-
RESONANCE RESISTANCE
50 kΩ max. for low power designs
-
SHUNT CAPACITANCE C0
1.3 pF typ.
-
TURNOVER TEMPERATURE
+25°C ±5°C
-
PARABOLIC COEFFICIENT
-0.04 ppm/°C²
-
DRIVE LEVEL
0.2 µW typical (1.0 µW max.)
-
AGING
±3 ppm max. per year
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°/+125°C
-
DELIVERY FORM
Tape and Reel (1.000 ~ 3.000 pcs per reel)
DATASHEET: SMD 32.768 kHz QUARTZ CRYSTAL M3215RR
