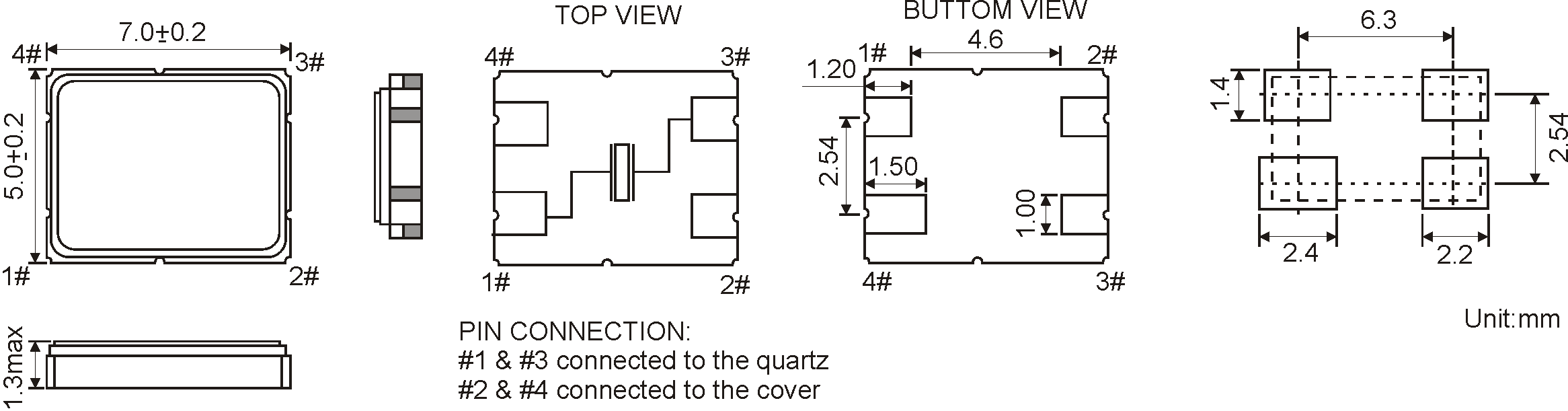

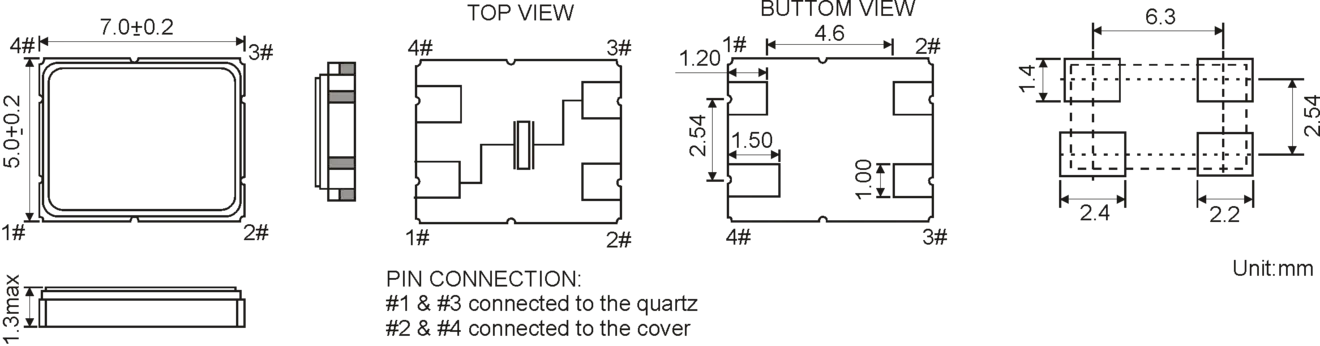

SMD QUARTZ CRYSTAL 7.0 x 5.0 mm 6.0 - 80.0 MHz

NUMBER OF SOLDER PADS

4

FREQUENCY RANGES (SEPARATED)

6.00 ~ 45.0 MHz AT-Fundamental
40.0 ~ 80.0 MHz 3rd Overtone

STANDARD FREQUENCIES

6.0 MHz / 8.0 MHz / 10.0 MHz / 12.0 MHz / 14.7456 MHz / 16.0 MHz/ 20.0 MHz / 22.1184 MHz / 25.0 MHz / 24.0 MHz / 24.576 MHz / 25.0 MHz / 26.0 MHz / 27.0 MHz / 28.322 MHz / 28.63636 MHz / 29.4912 MHz / 30.0 MHz / 32.0 MHz / 48.0 MHz / 49.152 MHz / 50.0 MHz

FREQUENCY TOLERANCES AT 25°C

±5 ppm ~ ±50 ppm

LOAD CAPACITANCE (CL)

6 pF ~ 50 pF or Series

WORKING TEMPERATURE RANGES

0/+50°C ~ -40/+125°C

SHUNT CAPACITANCE C0

7 pF max.

DRIVE LEVEL

0.01 mW ~ 0.1 mW standard (optional 1.0 mW available)

AGING

±2 ppm per year standard (optional ±1 ppm available)

INSULATION RESISTANCE

>500 MΩ DC/100V ±10%

STORAGE TEMPERATURE

-55°+125°C

DELIVERY FORM

Tape and Reel (1.000 pcs per reel)
