SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 10.0 - 54.0 MHz

SMD-CRYSTAL SERIES

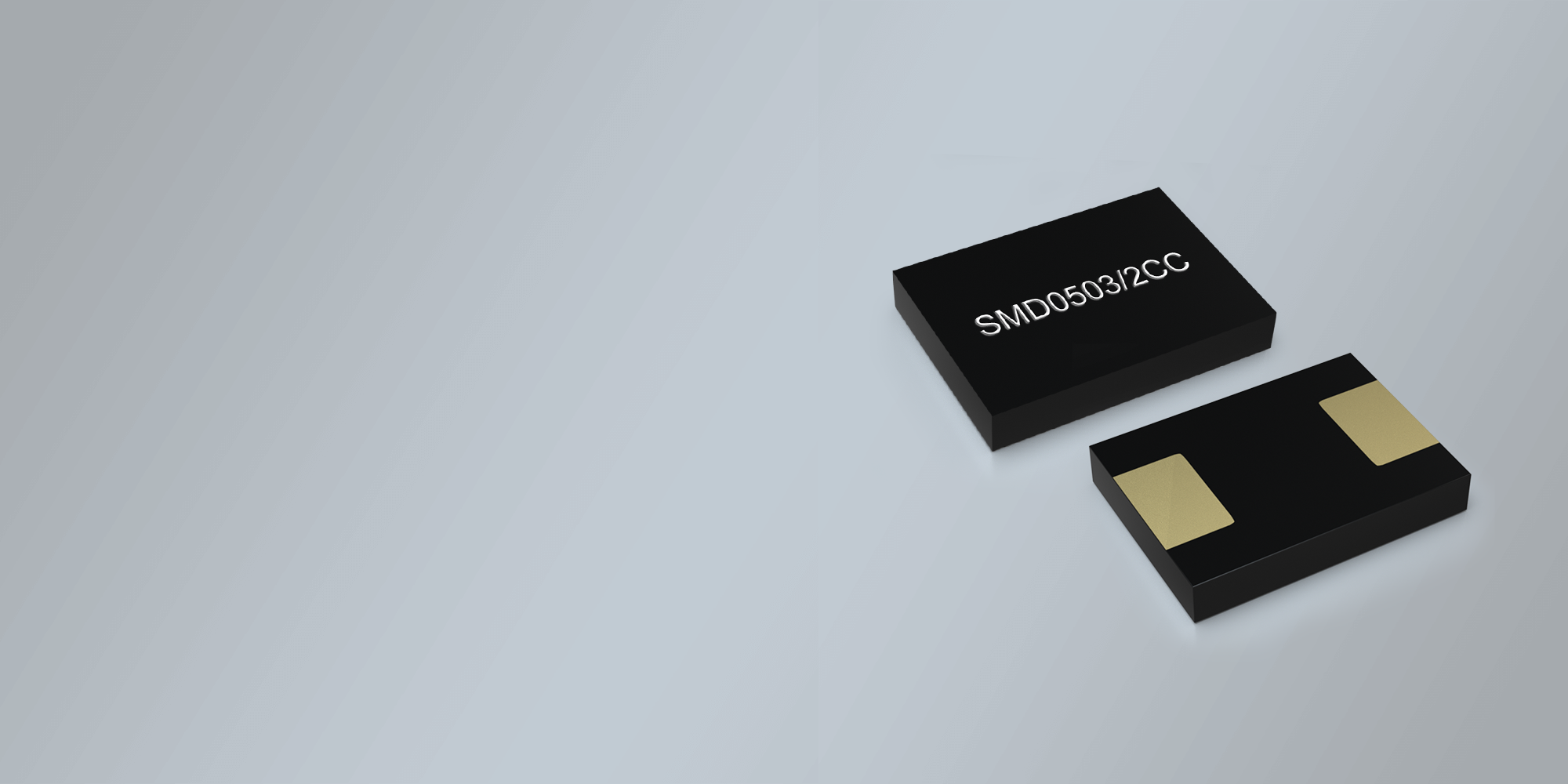

SMD0503/2CC (5.0x3.2x1.2mm)

NUMBER OF SOLDER PADS

2

STANDARD FREQUENCIES

8.0 MHz / 8.192 MHz / 9.8304 MHz / 9.84375 MHz / 11.0592 MHz / 11.2896 MHz / 12.0 MHz / 13.0 MHz / 13.56 MHz / 19.66 MHz / 20.0 MHz / 22.5792 MHz / 25.0 MHz / 26.0 MHz / 27.0 MHz / 27.12 MHz / 32.0 MHz / 36.0 MHz / 40.0 MHz / 48.0 MHz / 54.0 MHz

RoHS

RoHS compliant.
This product contains lead (Pb)
according exemption No. 7(c)-I.

FREQUENCY TOLERANCES AT 25°C

±15 ppm ~ ±50 ppm

RESONANCE RESISTANCE

80 ~ 30 Ω max.

LOAD CAPACITANCE (CL)

6 pF ~ 50 pF or Series

WORKING TEMPERATURE RANGES

0/+50°C ~ -40/+85°C

SHUNT CAPACITANCE C0

7 pF max.

DRIVE LEVEL

100 µW max. standard (other parameters deliverable on request)

AGING

±3 ~ ±5 ppm per year standard ((±2 ppm max. available on request)

STORAGE TEMPERATURE

-55°+125°C

DELIVERY FORM

Tape and Reel (1.000 pcs per reel)
