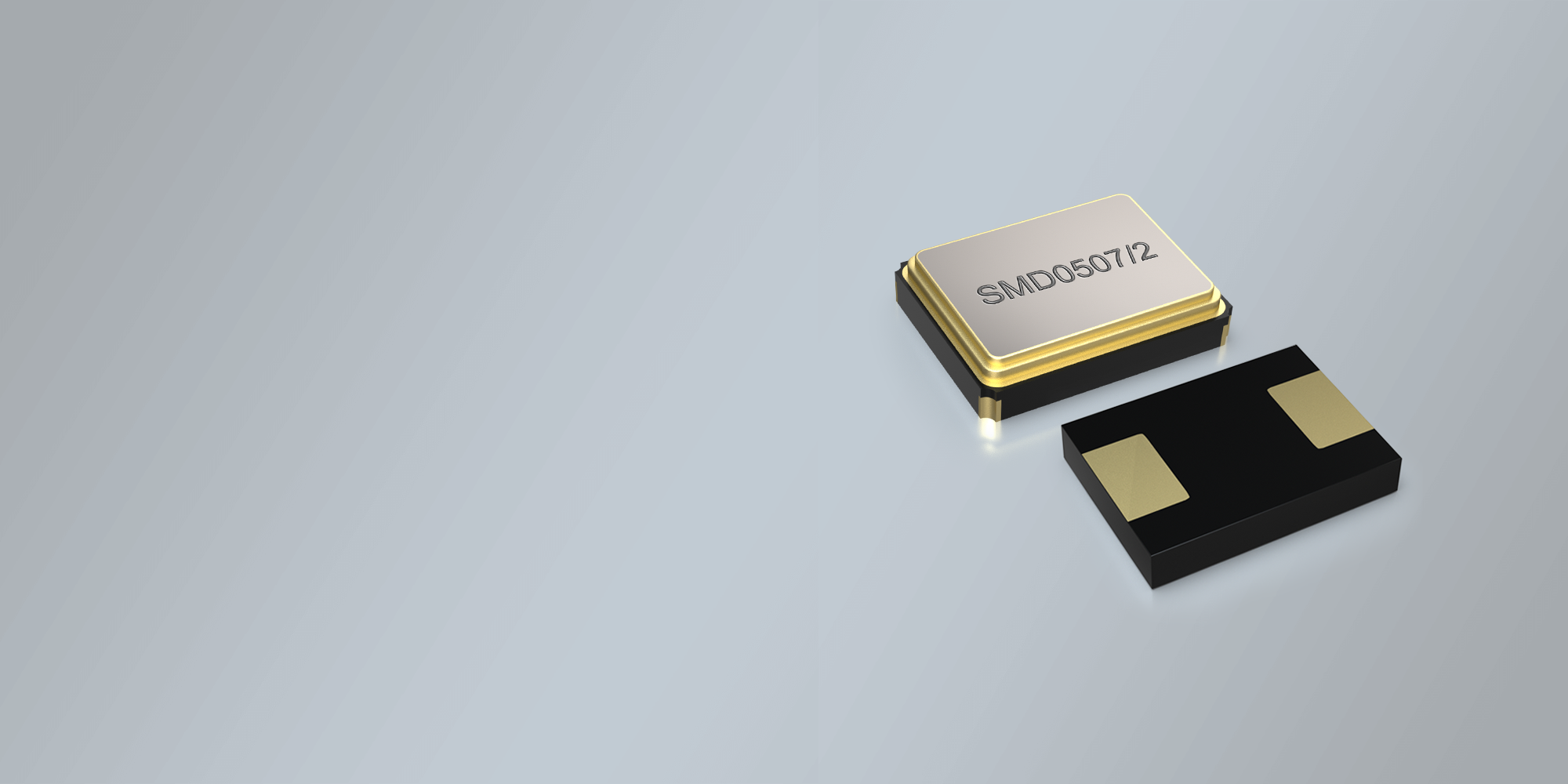

SMD QUARTZ CRYSTAL 7.0 x 5.0 mm 6.0 - 150.0 MHz

NUMBER OF SOLDER PADS

2 Please do not use this housing for new design Please use SMD0507/4 for new design

FREQUENCY RANGES (SEPARATED)

6.0 ~ 48.0 MHz AT-Fundamental 40.0 ~ 150.0 MHz 3rd. Overtone AT-cut

STANDARD FREQUENCIES

7.3728 MHz / 7.680 MHz / 8.0 MHz /
8.192 MHz / 9.6 MHz / 9.8304 MHz /
10.368 MHz / 11.0592 MHz / 12.5 MHz /
12.8 MHz / 13.0 MHz / 13.56 MHz /
14.318 MHz / 14.31818 MHz / 15.36 MHz /
16.384 MHz / 18.432 MHz / 19.660 MHz

FREQUENCY TOLERANCES AT 25°C

±10 ppm ~ ±30 ppm (±30 ppm standard)

LOAD CAPACITANCE (CL)

10 pF ~ 32 pF or Series Resonance

WORKING TEMPERATURE RANGES

-20/+70°C ~ -40/+125°C

RESONANCE RESISTANCE

110 Ω max.

SHUNT CAPACITANCE C0

7 pF max.

DRIVE LEVEL

0.01 mW ~ 0.1 mW typ.

AGING

±3 ppm per year standard

INSULATION RESISTANCE

>500 MΩ DC/100V ±10%

STORAGE TEMPERATURE

-55°+125°C

DELIVERY FORM

Tape and Reel (1.000 pcs per reel)
