THT QUARTZ CRYSTAL UM1 8.0 x 3.1 mm 6.00 - 200.0 MHz
- High reliability for low cost
- Tight frequency stabilities possible
- Extended temperature range to -40/+125°C available
- Excellent clock signal generator for CPU’s
- Cheapest available crystal with tight tolerances up to 200 MHz
- General Data
- Frequency Stabilities

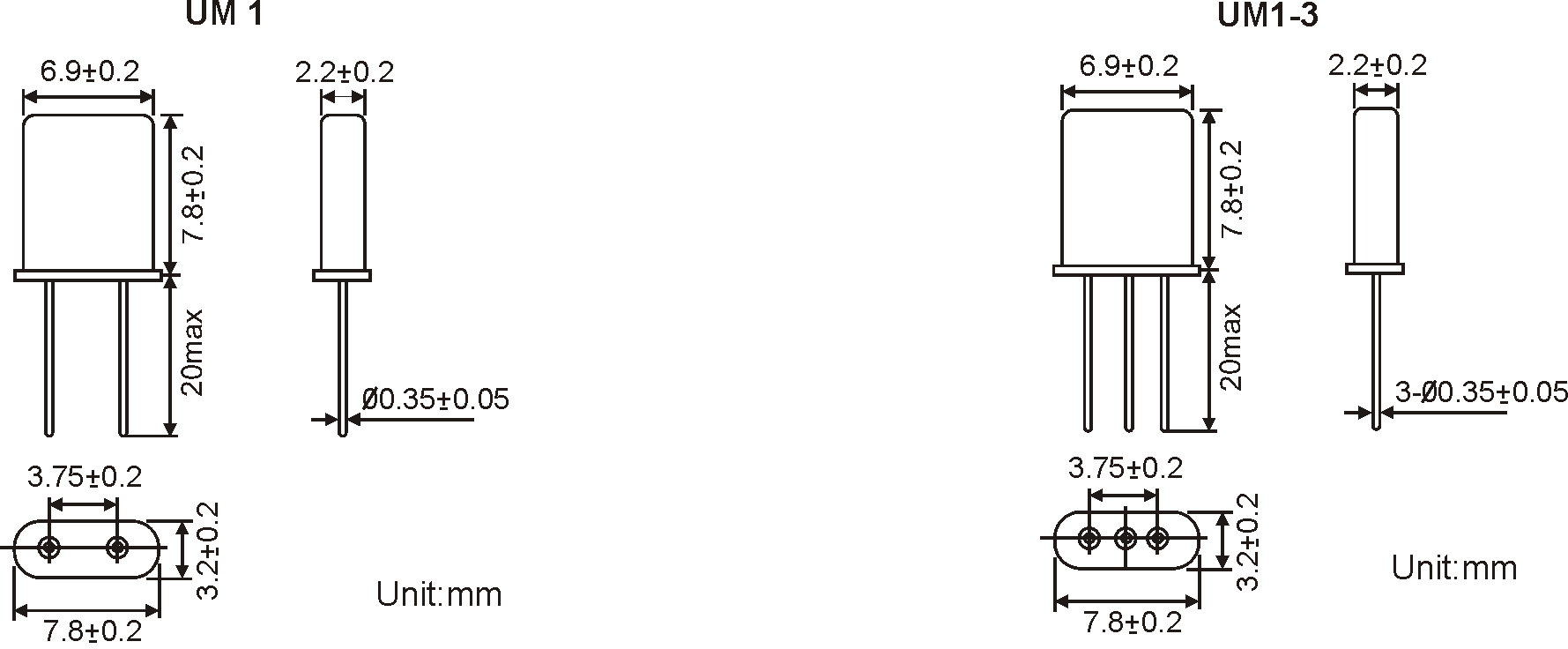

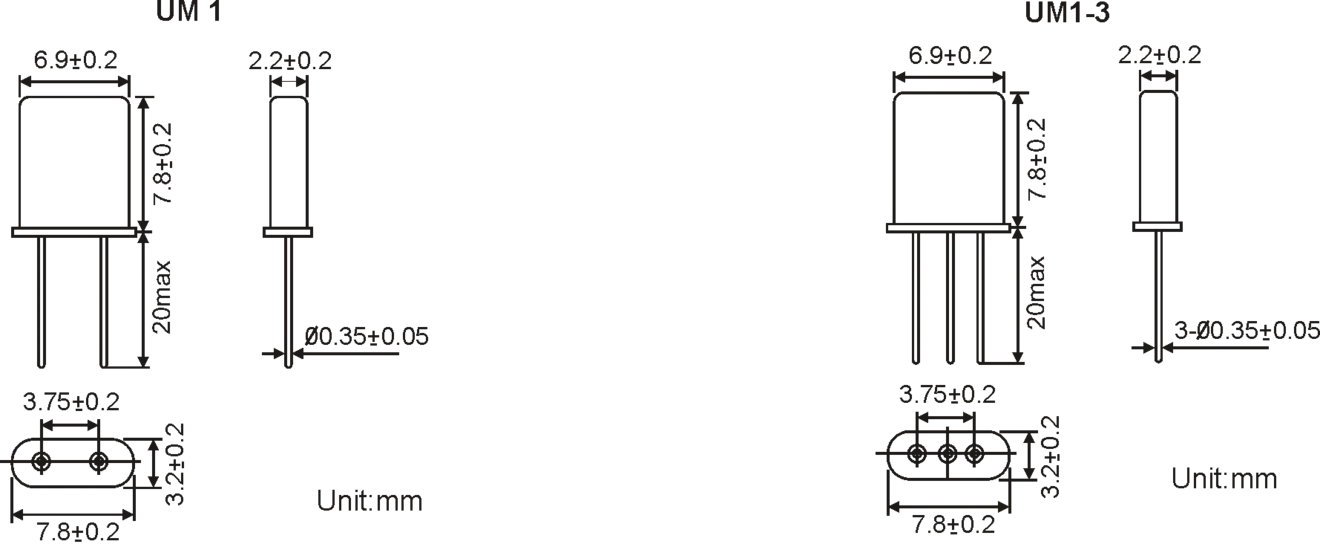

- Dimensions
- Product Enquiry Configurator
- Sample Request Configurator
-
Product Name
THT Quartz Crystal
-
Package
THT Metal
-
Dimensions in mm (W x D x H)
8.0 x 3.1 x 8.0 mm
-
Frequency Range
6.00 - 200.00 MHz
-
NUMBER OF LEADS
2 (standard)
3 (optional) -
FREQUENCY RANGES (SEPARATED)
6.0 ~ 45.0 MHz AT-Fundamental
30.0 ~ 100.0 MHz 3rd Overtone
80.0 ~ 155.0 MHz 5thOvertone
120.0 ~ 200.0 MHz 7th Overtone -
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
-
RESONACE RESISTANCE
60 Ω Max. ~ 120 Ω Max.
-
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
-
SHUNT CAPACITANCE C0
7 pF max.
-
DRIVE LEVEL
100 µW typical
(0.01 mW ~ 1 mW possible on request) -
AGING
±3 ~ ±5 ppm per year standard
(±1 or ±2 ppm available as option) -
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM THT
Bulks standard
-
OPTIONS FOR THT
Insulator
Cutted leads
Tape and Reel (1000 pcs per reel)
| ±3 ppm | ±5 ppm | ±10 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • | • |
| 0/70 °C | • | • | • | • | • | |
| -20/70 °C | • | • | • | • | • | |
| -40/85 °C | • | • | • | • | ||
| -40/125 °C | • |
DATASHEET: THT QUARTZ CRYSTAL UM1-UM5-THT
