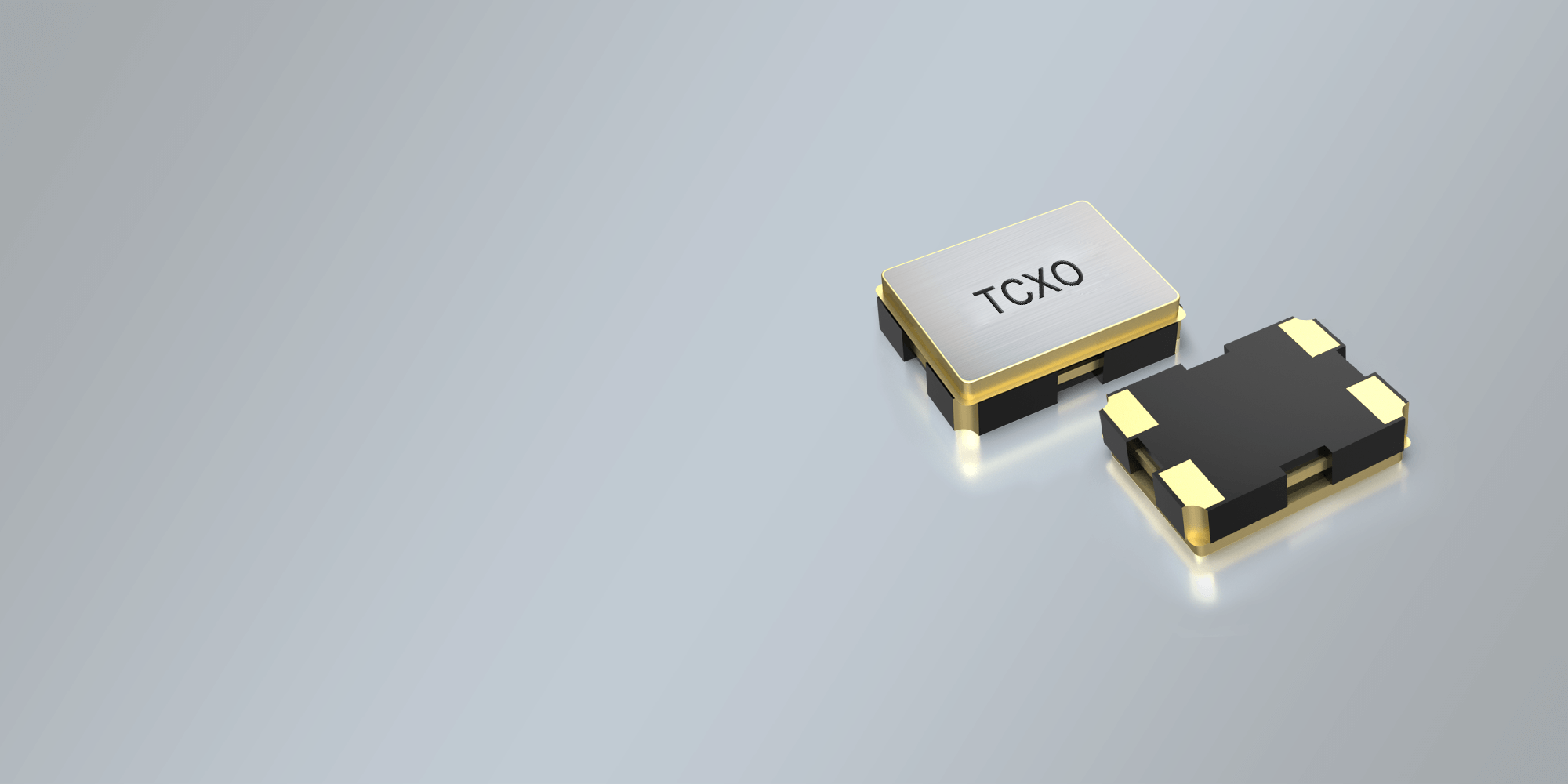

OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
STORAGE TEMPERATURE RANGE
-55/+125°C
STANDARD FREQUENCY
19.2 / 20 / 25/ 26 / 30 / 32/ 38.4 / 40 / 52 MHz
SUPPLY VOLTAGE (VDD)
+1.8V / +2.6V / +2.8V / +3.0V / +3.3V
CURRENT CONSUMPTION
+1.5mA max.(f≤26 MHz)
+2.0mA max.(26<f≤52 MHz)
+2.5mA max.(f≤60 MHz)
STAND-BY CURRENT
+3.0 µA max. if Enable/Disable function is required
OUTPUT LEVEL
0.8 Vp-p min. (f≤52 MHz) (Clipped Sinewave / DC-coupled)
OUTPUT LOAD
10kΩ // 10pF
FREQUENCY STABILITY INITIAL TOLERANCE
±1.5 ppm max. (after 2 reflows)
FREQUENCY STABILITY VS. TEMPERATURE
±0.5 ppm, ±1.0 ppm, ±2.0 ppm, ± 2.5 ppm max. / -30~+85°C
±0.5 ppm, ±1.0 ppm, ±2.0 ppm, ± 2.5 ppm max.
Other parameters are available on request
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
± 0.2 ppm max. (VDD±5%)
FREQUENCY STABILITY VS. LOAD VARIATION
± 0.2 ppm max. (10kΩ //10pF±10%)
FREQUENCY STABILITY VS. AGING
±1.0 ppm max. / year (ref. +25°C)
Start–up Time
2.0 ms max.

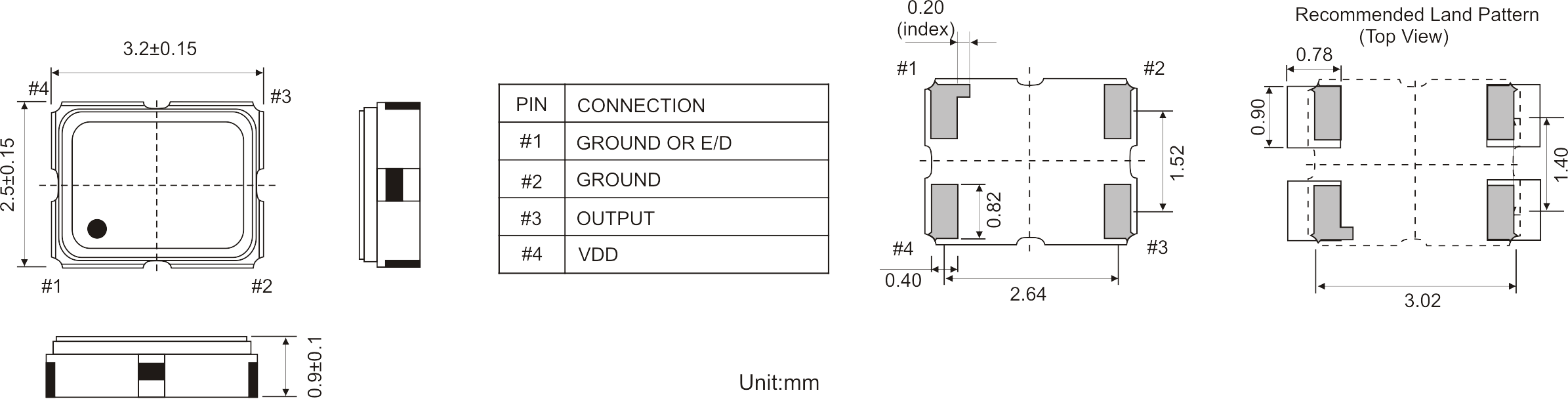

PIN 1
Standard version without enable/disable function
Optionally deliverable with enable/disable function
Phase Noise
[f ≤ 26MHz] [26<f≤40MHz][40MHz<f≤52MHz]
Offset 100Hz
-115dBc/Hz -110dBc/Hz -105dBc/Hz
Offset 1kHz
-135dBc/Hz -135dBc/Hz -130dBc/Hz
Offset 10kHz
-150dBc/Hz -150dBc/Hz -145dBc/Hz
Offset 100kHz
-155dBc/Hz -155dBc/Hz -150dBc/Hz
DELIVERY FORM
Tape and Reel / 2.000 pcs. per reel, other quantities are available on request
