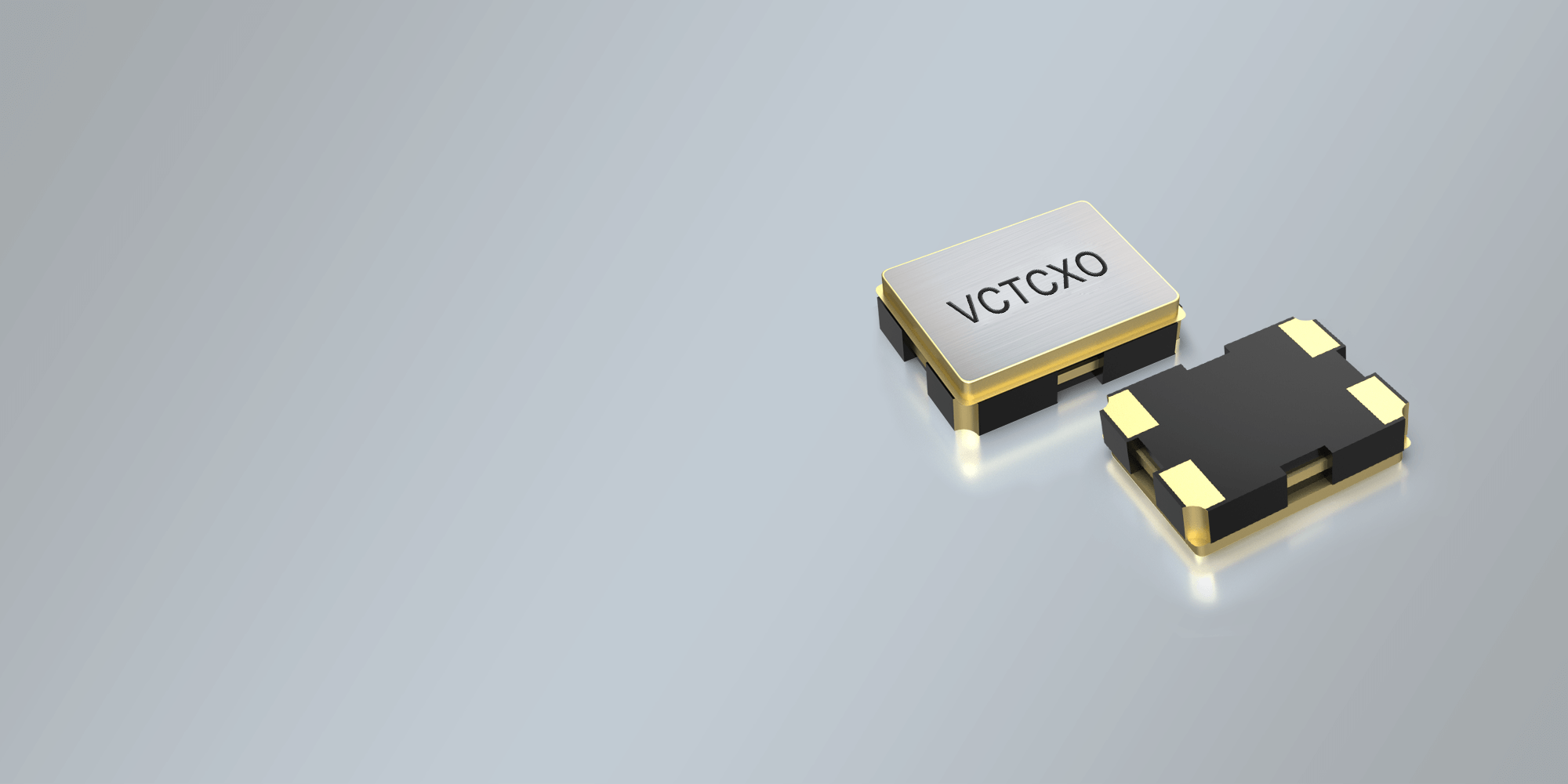

SMD VCTCXO OSCILLATOR 1.6 x 1.2 mm 16.0 - 60.0 MHz
- High reliability for low cost
- New standard for low cost SMD-VCTCXOs
- Wide frequency range 16.0 ~ 60.0 MHz
- Wide tuning range
- Wide supply voltage range of 1.8, 2.6, 2.8, 3.0 and 3.3 VDC
- High stability, low jitter, low power consumption
- Extended operating temperature range -40°C to +85°C
-
Product Name
VCTCXO
-
Package
SMD Ceramic/4pad
-

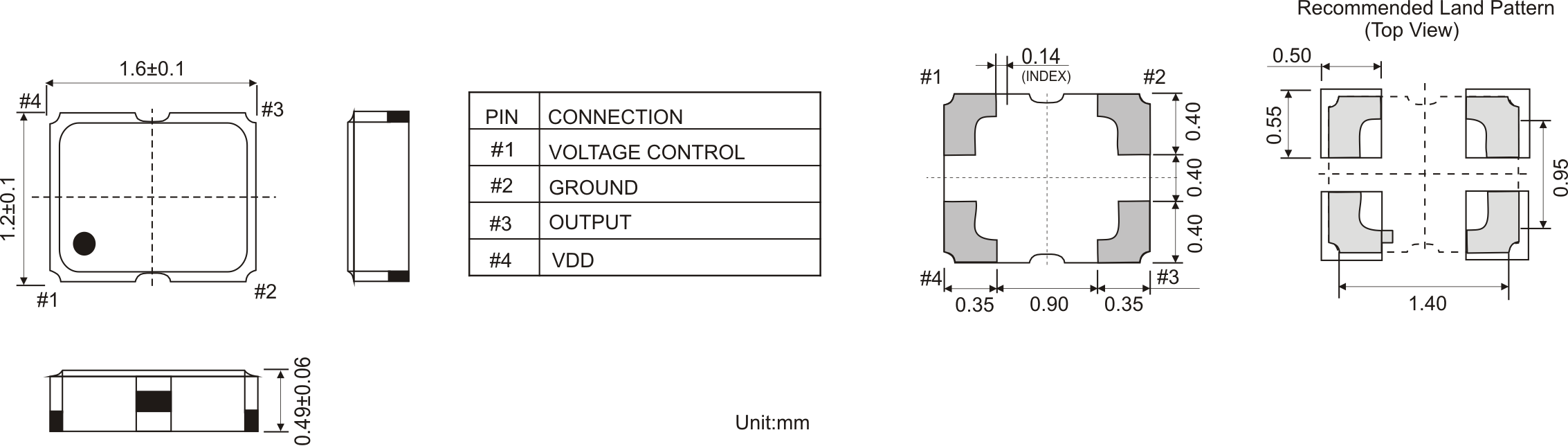

Dimensions in mm (W x D x H)
1.6 x 1.2 x 0.5 mm
-
Frequency Range
16.00 - 60.00 MHz
-
OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
STANDARD FREQUENCY
19.2 / 20 / 25/ 26 / 30 / 32/ 38.4 / 40 / 52 MHz
-
SUPPLY VOLTAGE (VDD)
+1.8V / +2.6V / +2.8V / +3.0V / +3.3V
-
CURRENT CONSUMPTION
+1.5mA max.(f≤26 MHz)
+2.0mA max.(26<f≤52 MHz)
+2.5mA max.(f≤60 MHz) -
OUTPUT LEVEL
0.8 Vp-p min. (f≤52 MHz) (Clipped Sinewave / DC-coupled)
-
OUTPUT LOAD
10kΩ // 10pF
-
FREQUENCY STABILITY INITIAL TOLERANCE
±1.5 ppm max. (after 2 reflows)
-
FREQUENCY STABILITY VS. TEMPERATURE
±1.0 ppm, ± 2.5 ppm max. / -30~+85°C
±1.0 ppm, ± 2.5 ppm max. / -40~+85°C
Other parameters are available on request -
FREQUENCY STABILITY VS. SUPPLY VOLTAGE
± 0.2 ppm max. (VDD±5%)
-
FREQUENCY STABILITY VS. LOAD VARIATION
± 0.2 ppm max. (10kΩ //10pF±10%)
-
FREQUENCY STABILITY VS. AGING
±1.0 ppm max. / year (ref. +25°C)
-
Start–up Time
2.0 ms max.
-
Phase Noise
[f ≤ 26MHz] [26<f≤40MHz][40MHz<f≤52MHz]
-
Offset 100Hz
-115dBc/Hz -110dBc/Hz -105dBc/Hz
-
Offset 1kHz
-135dBc/Hz -135dBc/Hz -130dBc/Hz
-
Offset 10kHz
-150dBc/Hz -150dBc/Hz -145dBc/Hz
-
Offset 100kHz
-155dBc/Hz -155dBc/Hz -150dBc/Hz
-
DELIVERY FORM
Tape and Reel / 2.000 pcs. per reel, other quantities are available on request
DATASHEET: SMD VCTCXO 1.6 x 1.2 - 3.2 x 2.5 mm 9.6 - 60.0 MHz
