SMD VCXO OSCILLATOR 5.0 x 3.2 mm 1.0 - 40.0 MHz
- High reliability for low cost
- 4pad and 6pad package designs
- Wide frequency range / wide tuning range
- High stability, low jitter, low power consumption
- Extended operating temperature range -40°C to +85°C
-
Product Name
VCXO
-
Package
SMD Ceramic/4pad and 6pad
-

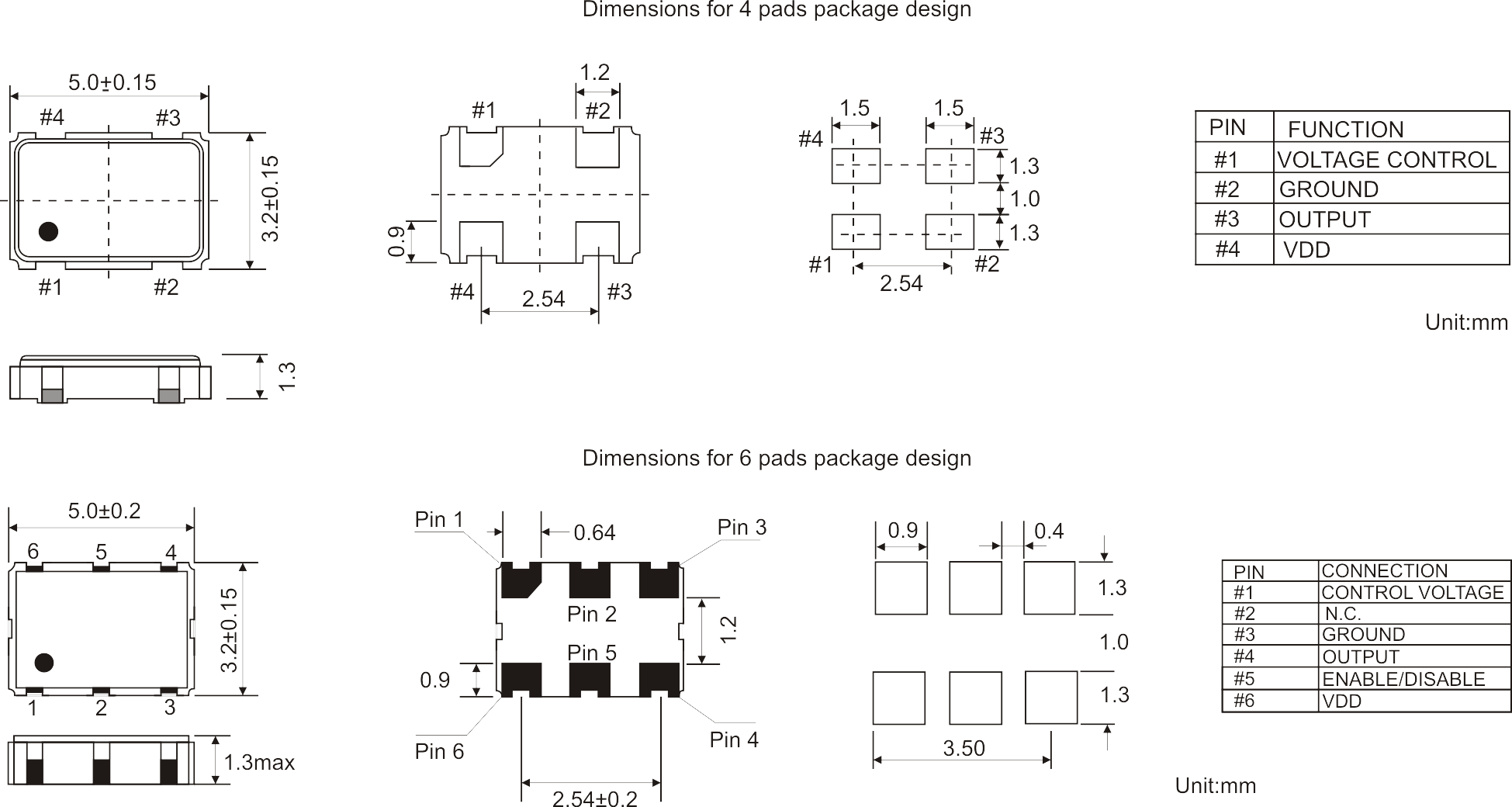

Dimensions in mm (W x D x H)
5.0 x 3.2 x 1.3 mm
-
Frequency Range
1.00 - 40.00 MHz
-
FREQUENCY RANGE VS SUPPLY VOLTAGE
3.3 VDC = 1.0 - 40.0 MHz
5.0 VDC = 1.0 - 40.0 MHz -
FREQUENCY STABILITY
±20 ppm / ±25ppm / ±50 ppm
-
OPERATING TEMPERATURE RANGE
-20/+70°C ~ -40/+85°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
DELIVERY FORM
TAPE & REEL
-
RoHS
Lead free and RoHS 2 compliant
DATASHEET: SMD VCXO 5.0x3.2 mm 4pad 3.3-5.0 VDC MHz
DATASHEET: SMD VCXO 5.0x3.2 mm 6pad 3.3-5.0 VDC MHz
