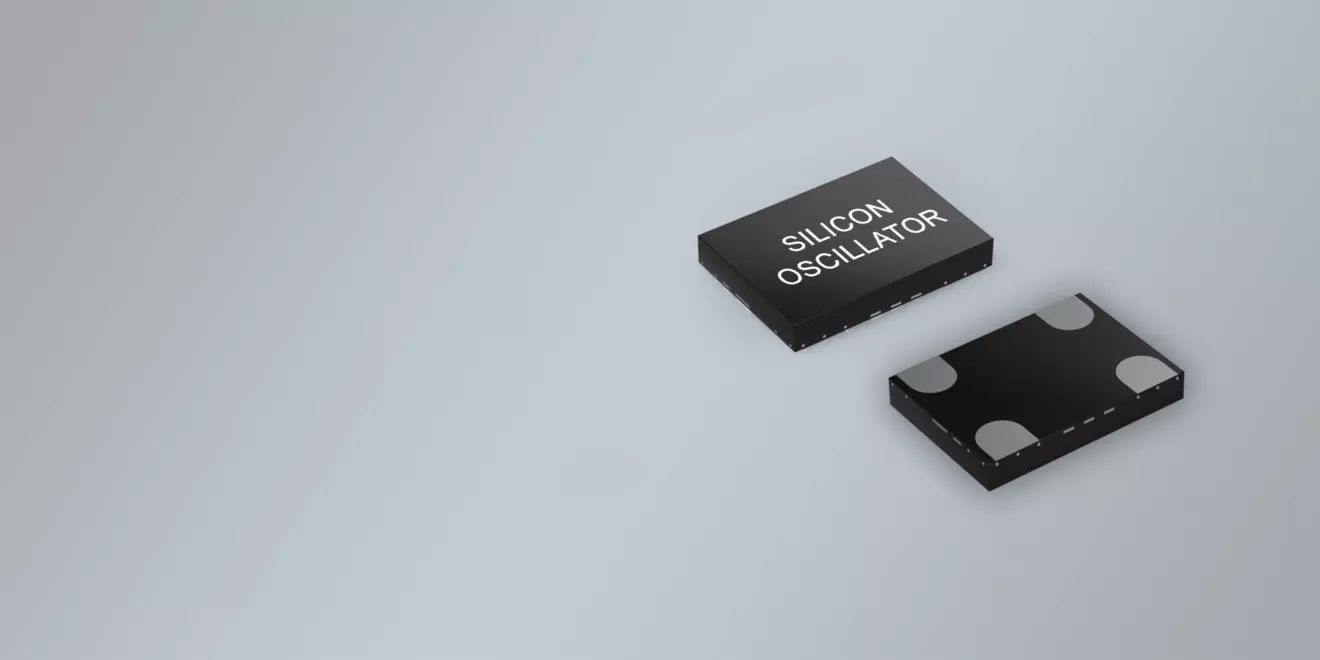

SMD LOW POWER 1 - 137 MHz PROGRAMMABLE SILICON OSCILLATORS
- Excellent long time reliability
- Excellent frequency stability as low as ±20 ppm over –40/+85°C
- Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
- Outstanding long term aging
- Express samples on the same day if ordered until 02:00 p.m.
-
Product Name
LPOP
-
Package
SMD QFN/4pad
-
Dimensions in mm (W x D x H)
2.0 x 1.6 ~ 7.0 x 5.0
-
Frequency Range
1.00 - 110.00 MHz
-
SUPPLY VOLTAGE
1.8 V to 3.63 V
-
FREQUENCY STABILITY
±20 ppm to ±50 ppm
-
OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantities -
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
-
Configurable feature set
• Customize specification for optimal system performance
• Use same base device for many design, reducing qualification needs
-
Small 2016 & 2520 packages for all frequencies, voltages and stability
• Save more board space without compromising performance and availability
-
Low power consumption
• Extends battery life in portable applications
• Reduces power consumption for greener systems
-
Configurable drive strength
• Slower rise/fall time that minimizes EMI from the oscillator
• Saves cost by driving multiple loads and eliminate additional timing components
-
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
DATASHEET: SMD Low Power 1-110MHz Programmable Silicon Oscillator (LPOP)
DATASHEET: SMD Low Power 115-137MHz Programmable Silicon Oscillator (LPOP)
