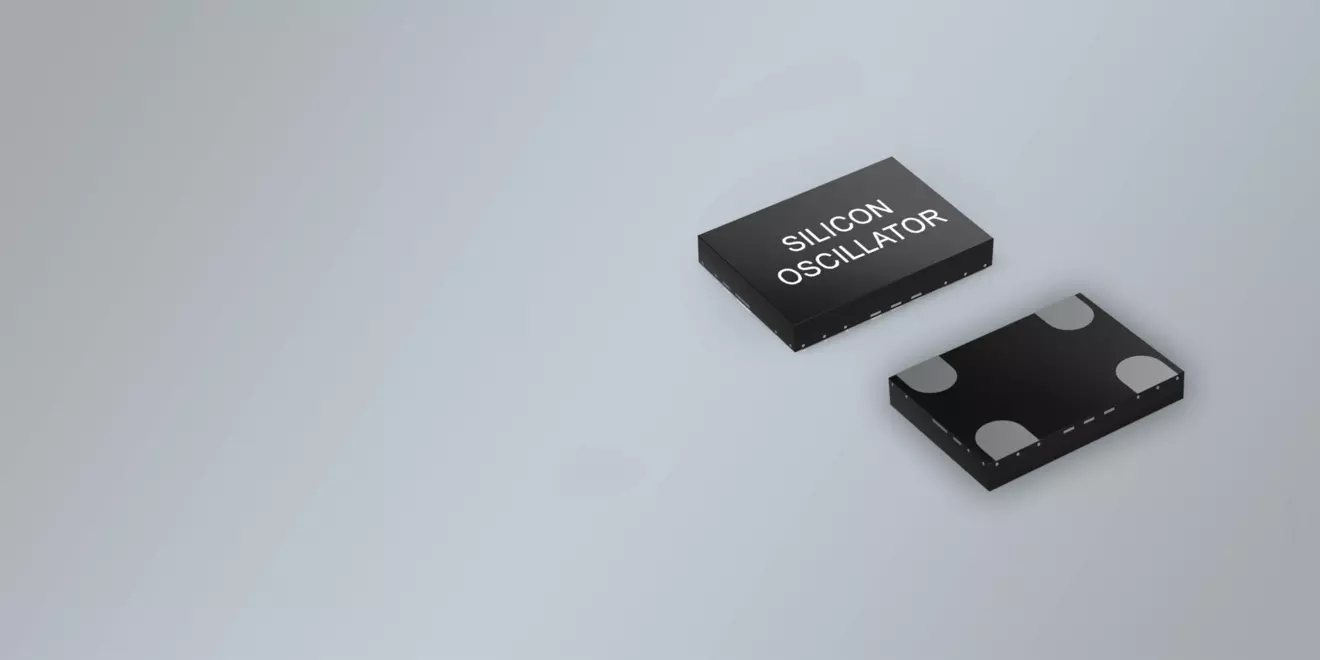

SMD WIDEST TEMPERATURE 1-137 MHz SILICON OSCILLATORS
- 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
- Widest Temperature Low Power Oscillator for Low Cost
- Excellent long time reliability
- Excellent frequency stability as low as ±20 ppm
- Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
- Operating temperature from -55°C to 125°C
- Express samples on the same day if ordered until 02:00 p.m.
-
Product Name
High Temperature 1 - 137 MHz
-
Package
SMD QFN/4pad
-
Dimensions in mm (W x D x H)
2.0 x 1.6 ~ 7.0 x 5.0
-
Frequency Range
1.00 - 110.00 MHz
-
SUPPLY VOLTAGE
1.8 V to 3.63 V
-
FREQUENCY STABILITY
±20 ppm to ±50 ppm
-
OPERATING TEMPERATURE RANGE
-55/+125°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantities -
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
-
Unique combination of product features
• Best-in-class stability over extreme temp range for space constrained environment
-
0.1 ppb/g low vibration sensitivity
• No performance degradation in harsh environment
-
50 kg shock and 70 g vibration
• Indestructable
-
Configurabler rise/fall time
• Optimize EMI to reduce interferece to other subsystem
DATASHEET: SMD Widest Temperature 1-110MHz Silicon Oscillator (WTLPO)
DATASHEET: SMD Widest Temperature 119-137MHz Silicon Oscillator (WTLPO)
